Quick Details

  • Type: Ornaments, Music Fountain
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JL Music Fountain
  • Model Number: JL2013 Music Fountain
  • Material: Metal
  • Guarantee:: 1~5 years Music Fountain
  • Control:: PLC Music Fountain
  • Company credit: first grade A Music Fountain
  • Fountain worklife: >10years Music Fountain
  • Color: multicolored Music Fountain
  • Cable: IEC standard Music Fountain
  • Voltage: 380V Music Fountain
  • Music Fountain located: ANKAPARK in Ankara, Turkey
  • size: 200 meter longth Music Fountain

Packaging & Delivery

Packaging Details wooden case
Delivery Time 60~90 dayS after reveiveing the downpayment.



Product Description

2013 ANKAPARK in  Ankara, Turkey

1. musical dancing fountain;
2. water screen fountain for movie laser projecting;
3. location: ANKAPARK in Ankara, Turkey
.

No.NameNozzleTypeQuantity
(pc)
height of
water spray
GRUNDFOS PUMPS under water LED lightother main materialABB Invertercontrol way
typeQuantitypower
KW
typeQuantitypower typeQuantity
AThe center of the sky high sprayspecial high spray nozzleDN2001120mSP215-9-1704680projector 2000W816high pressure
 keeper*1
ACS800-2004Inverter
BCenter Vice high spray adjustable water columnDN100-304max.60mSP160-5-A-554220projector 2000W48 ACS510-554Inverter
COne-dimensional circular swing adjustable one way nozzleDN50-2014round swing
12-15m
SP30-3-31442LED-24-30W280.84stepper motor 14sets  numeral control
DOne-dimensional vertical swingadjustable one way nozzleDN50-2012two side spray
15m
SP30-3-31236LED-24-30W240.72stepper motor12sets  numeral control
EThe choreography Fountain of
the one-dimensional
adjustable one way nozzleDN50-206012mSP30-3-360180LED-24-30W1203.6stepper motor60setsACS310-460numeral +Inverter
FInverter running springsadjustable water columnDN65-2596inverter
2m-20m
SP46-3-5.596528LED-24-30W1925.76 ACS310-5.596Inverter
GVice sprayadjustable water columnDN100-308max.50mSP95-6-268208projector 2000W816 ACS510-308Inverter
HProjectile fountain adjustable water columnDN100-304two side spray
20m
SP60-7-13452LED-24-30W320.96   program control
IPeacock Fountainadjustable water columnDN40-1412621pc×6 groups
10m
SP160-1-13678LED-24-30W661.98DN40ball valve126pcsACS310-156Inverter
JFog spraymist nozzleDN206601m-4mSP46-3-C-4416LED-24-15W1802.7   program control
KBaskets fountainadjustable water columnDN40-1412020pc×6 groups
3.8m
SP77-1-5.5633LED-24-30W1203.6DN40ball valve120pcsACS310-5.56Inverter
adjustable water columnDN40-147212pc×6 groups
6m
SP77-1-5.5633LED-24-30W722.16DN40ball valve72pcsACS310-5.56Inverter
adjustable water columnDN50-2061pc×6 groups
10m
SP30-2-2.2613.2LED-24-30W120.36 ACS310-2.26Inverter
L Fireworks fountainfireworks nozzlePLH-32112mscrew air pump322.5LED-24-30W631.89high pressure
electric valve*21
  program control
MTwo-dimensional rotating fountainadjustable two way nozzleDN50-201612mSP30-3-31648LED-24-30W481.44stepper motor*32  numeral control
NArtificial fogruby nozzleDN10-0.006"1000range
 400m
High pressure pump527.51200RGB-36-36W30010.8water treatment 1 setACS310-5.55Inverter
ORainbow lightnumeral rainbow light      600RGB-54-54W36019.44
PWater filmwater film nozzleDN3001sector diameter 45mSP125-6-A-552110    ACS510-552Inverter
QSollinger Lasergreen laser  BLITZ TIPO
 Dual G16
2
RGB colourful laserOptimas
RGB 15000
1
RChristie Projector15000LM projectorLX15001
Total 2225  2562327.2 163796.25  203
NoteNozzles :2221pcs;
LED-24-15W colourful under water lights 180pcs;LED-24-30W colourful under water lights 777pcs;numeral control rainbow lights 660sets; projector 20sets,Power 96.25KW;
Grandofs pump 248sets,screw air pump 3sets, high pressure pumps 5sets,Total power 2327.2KW;
stepper motor 118sets,power 59KW;high pressure solenoid valve 21pcs,power 5.25KW;
Sollinger16W green laser 2sets;Sollinger15W RGB colourful laser 1sets; Christie 15000LM projector 1sets.
ABB Inverter 203sets;monitor unit 1set,BOSE sound system 1set 24pcs
Totao power 2500KW





 Images flying in the air, comeing out form darkness, our water screen allows video and laser projection for magical effect!



Our engineers have develped the best quality surface for projection which answered and still answers to major shows productions' expections around the world.



installed in a pool, lake or into the sea, the water screeen offer a water sufface with complete transparency without any visible structure.



with millions of wahter drops spread and falling on the back, our water screeen creates a volume of water which gaives and very imoressing feeling of 3D effect.

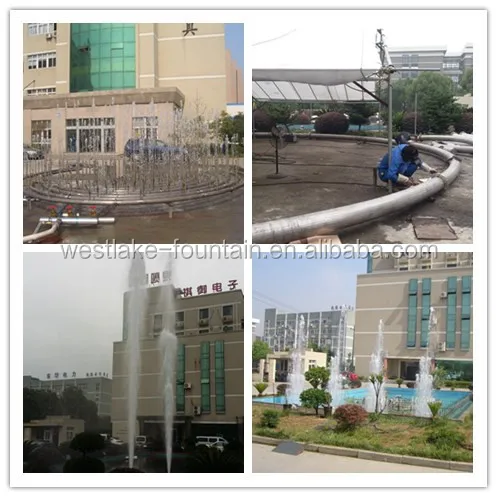

Inspection

All the product has been tested before the shipping.

the equipment is manufactured in our workshops and

checked in our testing pool

Packaging & Shipping



Our Services

We  provide one - stop service( turn-key job ).

Project manager, Designers, engineers, electricians and electronic, hydraulic and computer engineers design, research and produce all our products and services form start to finish.



  • Civil construction guidance
  • Provide CAD drawing within 10 days, after confirmed
  • Fountain operation instruction
  • Fountain maintenance institution
  • 24 hours feedback
  • Dispatch the laber/engineers/project manager for installation
  • Professional and Experienced team for oversea projects

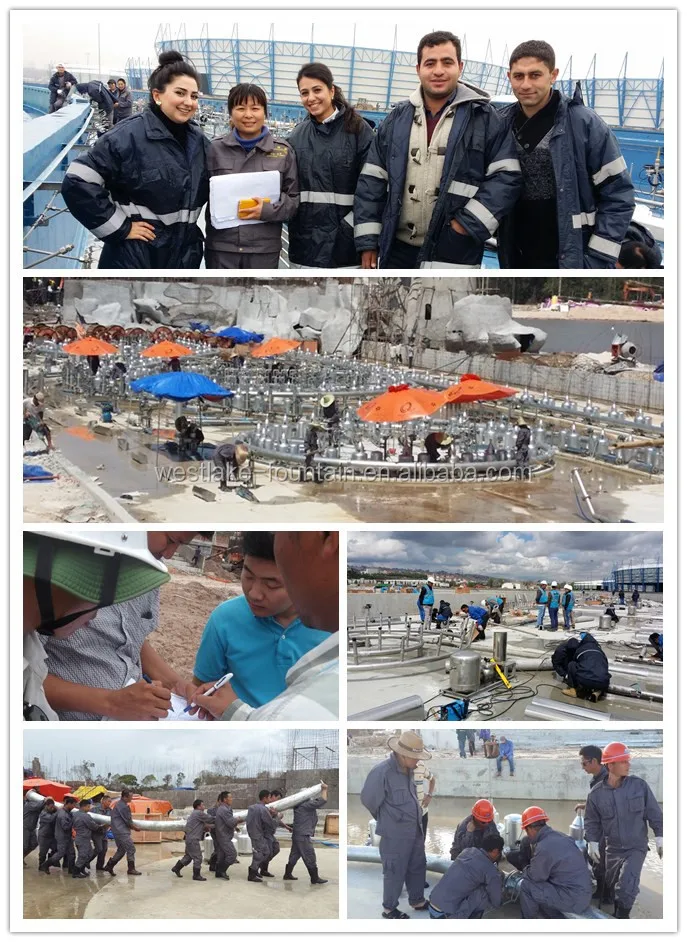

 Installation and tainning Team



Company Information

 Hangzhou West-Lake Fountain Installation Serials Co., Ltd. was found in 1989, which is one of the largest and qualified fountain makers in China. We obtained ISO9001:2008 Certification in 2011. In 2003, our company was designated as a supplier of the Ministry of Construction. We were evaluated to be the R&D base of musical fountains, laser waterfall fountains, and atomization equipments by the Institution of Science & Information.



Our products are utilized in many national, provincial, and foreign projects, and we enjoy a high prestige in the industry. Our domestic clients are more than one thousand. Our products are sold to the USA, Mali, Denmark, Vietnam, Thailand, Laos, Egypt, Romania, Ukraine, Iran, Hong Kong, and Taiwan area.

Our Design Team

FAQ

Process about fountain projects .

1. Goverment or Investors make an investment decision for fountain project.
2. By the professional company to complete the design and budget pricing. (Usually takes 15 days)
3. Goverment or Investors make the decision for the final plan and budget. (Usually takes 10 days)
4. Choose the professional company to talk about the cooperation details and sign the contract. (Usually more than 15 days)
5. Goverment or Investors finish the pool's civil work, like the water supply,power,and control room. (Usually more than 15 days)
6.For the project,fountain company should Pre-purchase Pumps,cable and so on, and manufacturing fountain pipes and nozzles. (Usually small project takes 30 days,big project takes 60 days or more)
7.The fountain equipment package and shipment to the Destinations. (Usually takes 30 days or more)
8.On-site installation, commissioning, formal fountain show. (Usually takes 20~30 days or more)

The No.5&6 can do at the same time.So the total time takes about 4 months, if special circumstances can be shortened one month. But your project is big project,so i think maybe more than 5month.









Let me know your project:



1. Fountain Type. (Musical/Non-music)
2. Fountain Site & Size (picture or CAD drawing with size and water quality )
3. The budget for fountain.
4. Special Requirements
